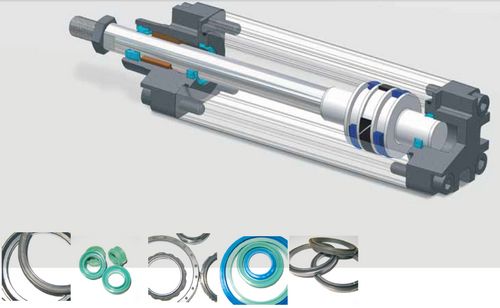

Y-QAPA- Pnuematic Piston Seal

Y-QAPA- Pnuematic Piston Seal

Optional material
NBR		-20~80℃
Compound rubber		-20~120℃
FKM		-20~250℃
Cold Weather Curability		-60~-30℃
High abrasion resistance and high temperature resistance
If you have any other requirements(temperature,speed etc.),please contact us.
We can recommend you the most proer material and constructment.
					Unit:mm
No.	D	d	H	D1	G
Y-QAPA10	10	5.3	1.6	9.7	2.2
Y-QAPA12	12	7.3	1.6	11.7	2.2
Y-QAPA16	16	11.2	1.6	15.7	2.2
Y-QAPA20	20	13	2.2	19.5	2.5
Y-QAPA25	25	16.6	3	24.5	3.2
Y-QAPA32	32	23.5	3	31.5	3.2
Y-QAPA40	40	31.8	3	39.5	3.2
Y-QAPA50	50	39.5	3.8	49.5	4.2
Y-QAPA63	63	52.5	3.8	62.4	4.2
Y-QAPA80	80	64.5	5.6	79.4	6.0
Y-QAPA100	100	84.5	5.6	99.4	6.0
Please contact us for other specifications.
